A raised deck gives a home two outdoor levels, but most homeowners only ever use the top one. Every rainfall slips through the gaps between the deck boards and turns the space underneath into a dripping, muddy zone where furniture rusts and stored items mildew. An under deck drainage system changes that entirely: it catches the water as it falls through the decking and channels it away to a gutter, leaving the area below dry and usable.
In short, an under deck drainage system is a network of troughs, membranes, or interlocking panels installed above or below your deck joists that intercepts rainwater and snowmelt before it reaches the ground beneath your deck. Done well, it converts wasted space into a genuine second outdoor living area, protects the deck frame from constant moisture, and adds usable square footage without extending the home's footprint.
How Rainwater Travels Through Deck Boards — and Where an Under-Deck Drainage System Catches It
Deck boards are installed with small gaps, usually 3 to 6 millimetres, so they can expand, contract, and shed surface water. Those gaps work on top of the deck, but they also let every rainfall pass straight through to the joists, beams, and ground below. Over time, that constant wetting encourages rot in timber framing, stains on patios and siding,
An under deck drainage system interrupts that path in one of two places. Above-the-joist systems lay a waterproof membrane across the tops of the joists before the deck boards go down, so water never touches the frame. Below-the-joist systems hang a sloped ceiling of interlocking panels beneath the joists, catching water after it passes the boards and guiding it to a gutter. Either way, gravity does the work: the system is pitched at roughly 6 millimetres per 300 millimetres (about 1/4 inch per foot) toward the outer edge of the deck, where a gutter and downspout carry water away from the foundation. That placement decides timing: membranes suit new or re-boarded decks, while ceiling panels retrofit finished decks.
Above-the-Joist Membranes vs. Below-the-Joist Ceiling Panels: Which Under-Deck Drainage Approach Fits Your Deck?
Above-the-joist membranes, such as Trex RainEscape and DEK Drain TOPSIDE, are heavy-duty plastic or rubber sheets or troughs laid over the joists and sealed at the seams. Because they sit under the decking, they shield the entire frame from moisture and last a long time — Trex RainEscape is backed by a 25-year warranty. The trade-off: the membrane is not attractive, so a finished look needs a separate ceiling, and the system is essentially new-build only.
Below-the-joist ceiling panels, such as TimberTech DrySpace and DEK Drain UNDERSIDE, are interlocking vinyl or aluminum panels hung beneath the joists. They solve drainage and finishing in one step: the underside of your deck becomes a clean, flat ceiling in a choice of colours, and you can mount lights and fans to it. They are the standard retrofit choice because the existing deck boards stay in place. The compromise is that joist tops still get wet during rain, though the panels prevent the prolonged saturation that causes most rot. Corrugated panels are the cheapest option, but look unfinished.
Budgeting Your Under-Deck Drainage Project: Material, Gutter, and Labor Estimates
Pricing varies widely by system, deck size, and region, so treat every figure here as a budgeting estimate, not a quote. A basic under-joist trough system runs roughly $12–$24 per square foot installed, while a drainage layer combined with a finished ceiling typically lands between $22–$40 per square foot. An above-the-joist membrane plus a full re-deck is the most expensive route, often $28–$55 or more per square foot, because you are paying for new decking as well as drainage.
Several line items sit outside the per-square-foot rate. Gutters and downspouts for a typical deck add roughly $200–$900 depending on length and whether the run must be extended away from the foundation. An electrical package — LED downlights, a ceiling fan, and GFCI-protected circuits — commonly adds $600–$2,000. Permits, structural repairs to rotted framing found during the work, and demolition of old boards push the total higher. On a 300-square-foot deck, a realistic all-in budget for a professionally installed below-joist system with a finished ceiling and basic lighting is roughly $7,000–$14,000, while a DIY corrugated-panel setup for the same deck can come in under $1,000 in materials.
Designing the Dry Room Beneath Your Deck: Ceilings, Lighting, and Airflow

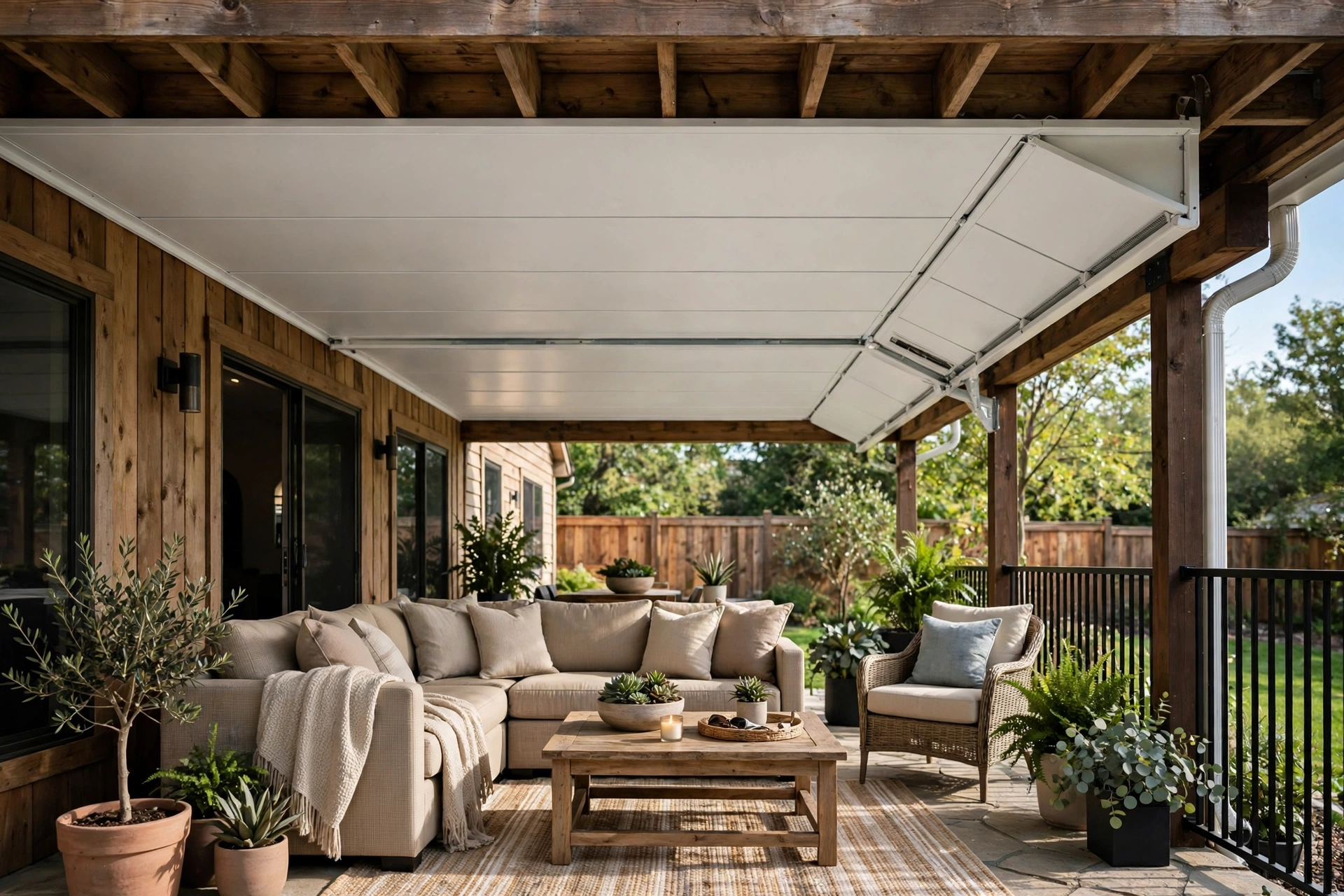

Once water is managed, the space under a raised deck can be finished almost like an outdoor room. Ceiling height matters first: most under-deck spaces on a second-storey deck offer 2.4 to 3 metres of headroom, plenty for seating and dining, but check for low beams before placing furniture.
Lighting transforms the space more than any other single addition. LED downlights set into the ceiling panels give even, glare-free light. A ceiling fan rated for damp locations keeps air moving on still summer evenings, and a patio heater extends the season into spring and autumn. All wiring must be outdoor-rated and GFCI-protected — this is work for a licensed electrician, not a weekend experiment.
Airflow is the detail most often overlooked. An under-deck ceiling should not be sealed tight against the house wall or rim joist; the joist cavity needs ventilation so residual moisture can dry rather than condense on framing. Leave the perimeter open or vented where the manufacturer allows.
Installing a Below-the-Joist Under-Deck Drainage System, Step by Step
A below-the-joist panel system is the most common DIY-friendly project in this category. Always follow your specific manufacturer's instructions, which take precedence over this general sequence.
Plan a slope of about 6 millimetres per 300 millimetres toward the gutter side, and mark a level reference line and a sloped line on the joists.Measure and plan the fall.
Mount the collection gutter along the outer rim joist at the low end of the slope, with a downspout routed to a splash block or drain away from the foundation.Install the gutter and downspout first.
Attach sloped rails to the underside of the joists, following your marked slope line. These rails carry the panels and create the drainage plane.Fit the support rails.
Start at the house wall and work outward, overlapping each panel into the next so water flows over the joints, not into them.Hang the panels from high side to low side.
Flash and seal where the system meets the house wall — the most leak-prone joint in the whole installation — using the manufacturer's flashing and a compatible exterior sealant.Seal the house-wall junction.
Install perimeter trim to hide cut edges, then run a hose over the deck above and watch from below. Any drip points to a joint or flashing detail needing resealing.Add trim, then test.
Slope, Gutters, and Downspouts: The Drainage Details That Decide Whether Your Under-Deck Space Stays Dry
Most under-deck drainage failures trace back to three details, not to the panels themselves. The first is slope. A ceiling that is flat, or worse, slopes back toward the house, will pond water until it finds a seam and drips. Verify the pitch with a long level during installation, and recheck it after the first heavy rain
The second is gutter capacity. An under-deck gutter collects not only rain that falls on the deck but, on many homes, runoff from the roof above if the deck sits beneath a roofline. Undersized gutters overflow in heavy rain and dump water exactly where you do not want it. Use 150-millimetre (6-inch) gutters and generous downspouts, and add leaf guards if debris is a problem. The third detail is the discharge point: a downspout ending at the base of the house wall simply moves the puddle from under the deck to against the foundation. Extend downspouts to daylight, a dry well, or a drainage line at least a couple of metres from the house.
Under-Deck Drainage Leaks and Clogs: Diagnosing the Usual Suspects
Drips that appear only during heavy rain usually point to an overwhelmed gutter or a joint that has opened up; drips in one fixed spot after any rain usually mean a failed seal at a fastener, a panel joint, or the house-wall flashing. Check the gutter for blockages first — leaves and grit falling through deck-board gaps are the most common culprit — then inspect the suspect joint from below with a torch while someone runs a hose above.
- a panel that bellies downward has usually lost a fastener or lacks enough support rails. Add a rail or refasten.Sagging panels:
- brown or green marks indicate slow, persistent moisture. Look for a failed seam uphill of the stain, not at the stain itself.Staining on the ceiling:
- poor ventilation or standing water in a low spot. Check the slope and clear any debris damming the flow.Musty smell:
- the wall flashing has failed or was never installed. Fix this promptly, since it can damage siding and the ledger connection.Water down the house wall:
Do not just caulk a leak from below — that traps water inside the system. Find the entry point on the drainage plane and repair it there.
Keeping Your Under-Deck Drainage System Clear: A Seasonal Care Routine
Under-deck drainage systems are low-maintenance, not no-maintenance. In spring, check for winter damage: ice can shift panels, and freeze-thaw cycles can crack sealant at the wall flashing. In summer, look for UV brittleness on exposed vinyl edges and confirm fasteners are tight. Autumn is the critical season — clear fallen leaves from gutters, downspouts, and accessible troughs before winter, because a frozen leaf dam can back water up under the boards. In winter, watch for ice dams at the gutter and clear heavy snow from the deck surface. Clean the ceiling with mild soap and water and flush troughs with a hose.
When Under-Deck Drainage Work Belongs With a Licensed Contractor
Most below-the-joist panel systems are within reach of a competent DIYer, but several situations call for professional help. If the deck framing shows rot, insect damage, or a loose ledger connection to the house, structural repairs must come before any drainage work — and ledger and framing repairs are not DIY territory on a raised deck. Likewise, electrical work beyond plugging in a fixture, including new circuits, fans, and lighting, belongs with a licensed electrician with GFCI protection. Hire a professional outright for above-the-joist membranes on a new build, for large or multi-level decks, and for complex drainage layouts where the water path is not a simple single slope to one gutter.
Final Thoughts: Is an Under-Deck Drainage System Worth It for Your Raised Deck?
If your deck sits high enough to stand under and the space beneath it is currently wasted, an under-deck drainage system is one of the highest-value upgrades available: it effectively doubles the usable outdoor area of a raised deck without changing the home's footprint, protects the frame from moisture, and costs far less than building a separate covered patio. Choose an above-the-joist membrane if you are building new or re-decking, a below-the-joist ceiling system if you are retrofitting, and confirm slope, gutter capacity, and downspout discharge before you commit.
Under-Deck Drainage Questions Homeowners Ask Before They Build
Can an under-deck drainage system be added to a deck that is already built?
Yes. Below-the-joist ceiling panel systems are designed for exactly this situation and install beneath the existing joists without removing deck boards. Above-the-joist membranes suit new builds or re-decking projects.
Will the space under my deck stay completely dry in heavy rain?
A correctly installed system with adequate slope and gutter capacity keeps the area below dry in normal and heavy rain.
How much headroom do I lose under the deck?
A below-the-joist system typically drops the ceiling by roughly 50 to 150 millimetres below the joists, depending on the rails and panel profile.
Does an under-deck drainage system protect the deck frame from rot?
Above-the-joist membranes protect the frame almost completely, since water never reaches the joists. Below-the-joist systems protect against prolonged saturation, the main driver of rot, but joist tops still get wet during rain.
Can I install lights and a ceiling fan under a drained deck ceiling?
Yes, provided the fixtures are rated for damp or wet locations as appropriate, the wiring is outdoor-rated, and the circuits are GFCI-protected. New wiring should be done by a licensed electrician.
What maintenance does an under-deck drainage system need each year?
Clear gutters and downspouts of leaves and debris, flush troughs with a hose, check the house-wall flashing and panel joints for failed sealant, and inspect for sagging panels after winter. Most systems need only this seasonal routine and an occasional wipe-down of the ceiling.
